Q: What standards apply to drone batteries?

In Europe, batteries must comply with: UN 38.3: Safety testing for transport, including shock, vibration, and temperature tests. CE / REACH / RoHS: Environmental compliance and chemical safety requirements. EN 62133: Safety requirements for lithium batteries, including overcharge, short-circuit, and overheating protection. RTCA DO-160 (aeronautics): Resistance to extreme operating conditions, including altitude, temperature, and vibration. EASA (European Union Aviation Safety Agency): Requirements applicable to drones over 25 kg or used in critical operations. For military drones, such as interception drones: MIL-STD-810G: Resistance to shock, humidity, and temperature variations. STANAG 4671 (NATO): Interoperability and safety requirements for unmanned aircraft systems. UN 38.3, EN 62133, and RTCA DO-160 are key standards for drone battery applications. For defense applications, MIL-STD-810G and STANAG 4671 may also apply. EASA certification or approval requirements may be relevant for heavy drones or critical operations.

Q: What is the average lifespan of a drone battery, and how can it be extended?

Typical lifespan: LiPo: 300 to 500 cycles (2 to 3 years depending on usage). Li-Ion: 500 to 1,000 cycles (3 to 5 years depending on usage). Tips for extending battery life: Avoid full discharges (keep the charge level between 20% and 80%). Store batteries in a cool, dry environment (10–25°C). Use compatible chargers and avoid overcharging. Limit unnecessary exposure to shocks and vibrations.

Question 1

What technologies are suitable for drone batteries?

Accepted Answer

LiPo (Lithium-Polymer) and Li-Ion (Lithium-Ion) batteries dominate the drone market, but their characteristics differ significantly.
LiPo batteries offer several advantages: low weight, high energy density (150–250 Wh/kg), and high discharge rates (20C–40C). This technology is ideal for drones requiring power peaks, such as racing or aerobatic drones. Their drawbacks include a shorter service life (300–500 cycles), sensitivity to impacts and overheating, and the need for strict charge/discharge management. There is also a risk of fire if they are improperly used.
Li-Ion batteries offer a longer service life (500–1,000 cycles), greater thermal stability, high energy density (100–265 Wh/kg), improved safety, and reduced maintenance. They are well suited to long-duration, stable missions such as surveillance and mapping. Their drawbacks include slightly higher weight, a higher initial cost, and lower continuous discharge performance compared with LiPo batteries..

Question 2

What standards apply to drone batteries?

Accepted Answer

In Europe, batteries must comply with:

UN 38.3: Safety testing for transport, including shock, vibration, and temperature tests.
CE / REACH / RoHS: Environmental compliance and chemical safety requirements.
EN 62133: Safety requirements for lithium batteries, including overcharge, short-circuit, and overheating protection.
RTCA DO-160 (aeronautics): Resistance to extreme operating conditions, including altitude, temperature, and vibration.
EASA (European Union Aviation Safety Agency): Requirements applicable to drones over 25 kg or used in critical operations.

For military drones, such as interception drones:

MIL-STD-810G: Resistance to shock, humidity, and temperature variations.
STANAG 4671 (NATO): Interoperability and safety requirements for unmanned aircraft systems.

UN 38.3, EN 62133, and RTCA DO-160 are key standards for drone battery applications. For defense applications, MIL-STD-810G and STANAG 4671 may also apply. EASA certification or approval requirements may be relevant for heavy drones or critical operations.

Question 3

How can drone battery endurance be optimized?

Accepted Answer

Battery endurance can be optimized through several approaches:
- Battery technology: Choose Li-Ion batteries for their high energy density and stability, particularly for long-duration missions.
- Thermal management: Integrate cooling systems, such as heat sinks or ventilation, to prevent overheating and maintain performance.
- Weight and aerodynamics: Reduce the drone’s overall weight and optimize its design to minimize energy consumption.
- Charging and discharging strategy: Use smart chargers to avoid deep discharge cycles and extend battery service life.
- Onboard software: Implement energy management algorithms to adapt power consumption according to mission requirements.

Question 4

What safety criteria should be prioritized for military drone batteries?

Accepted Answer

For military drones, safety is critical. Key criteria include:

- Resistance to extreme conditions: Compliance with standards such as MIL-STD-810G for shock, vibration, and temperature, and STANAG 4671 for NATO interoperability.
- Protection against interference: Electromagnetic shielding to reduce the risk of disruption or electronic interference.
- Redundant safety systems: Integration of protective circuits, including automatic shutdown in the event of overheating, overcharging, or short circuits.
- Flame-retardant materials: Use of flame-resistant enclosures and separators to reduce fire risks.
- Certifications and standards: Compliance with UN 38.3, EN 62133, and RTCA DO-160 requirements to help ensure reliability in operational environments.

Question 5

What is the average lifespan of a drone battery, and how can it be extended?

Accepted Answer

Typical lifespan:

LiPo: 300 to 500 cycles (2 to 3 years depending on usage).
Li-Ion: 500 to 1,000 cycles (3 to 5 years depending on usage).

Tips for extending battery life:

Avoid full discharges (keep the charge level between 20% and 80%).
Store batteries in a cool, dry environment (10–25°C).
Use compatible chargers and avoid overcharging.
Limit unnecessary exposure to shocks and vibrations.

	Configuration

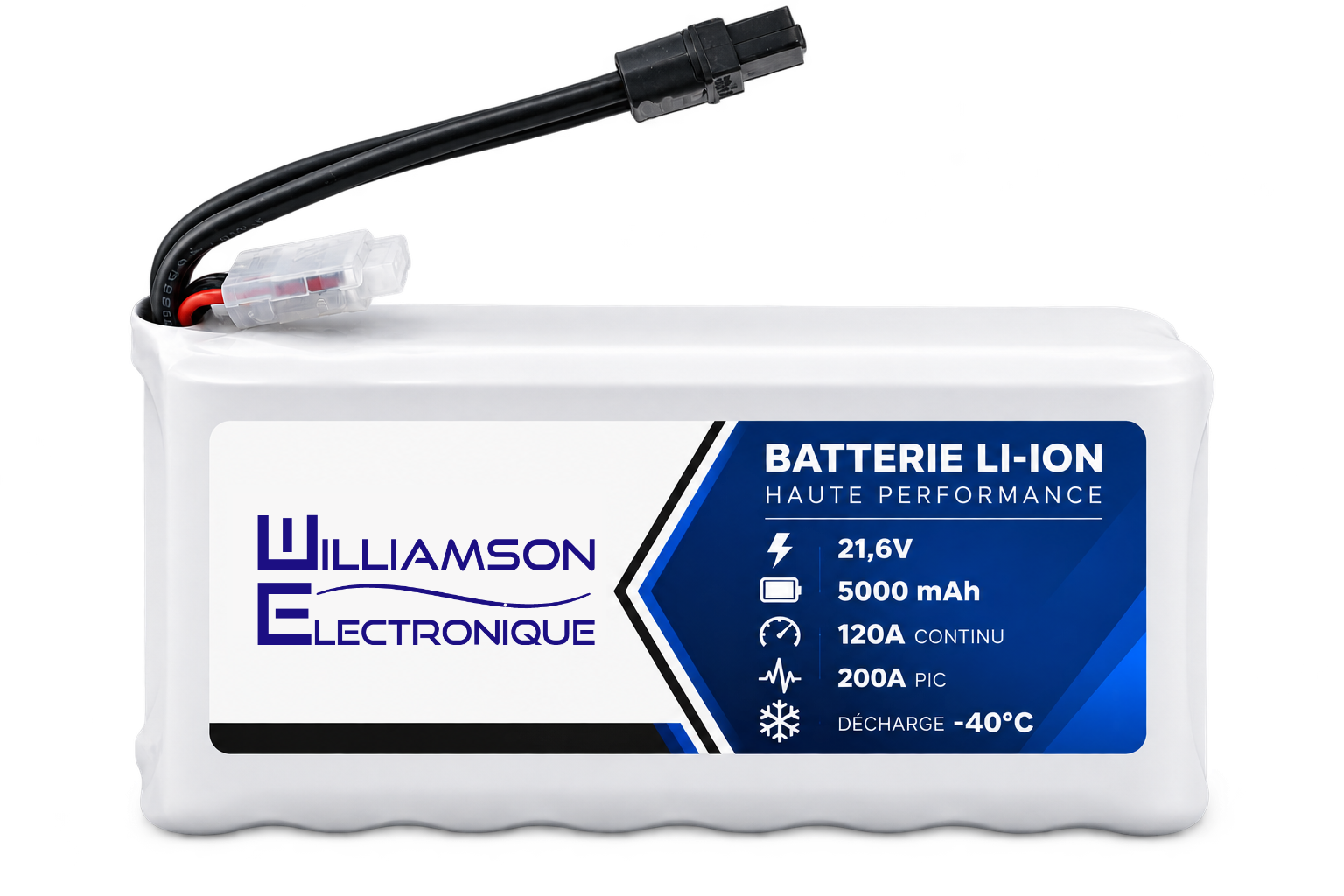

WILPA9601	6S1P	21.6 V	5000 mAh	60 A	120 A	XT 60	-40°C +60°C	500 cycles
WILPA9602	6S2P	21.6V	10 000 mAh	120 A	200 A	XT 60	-40°C +60°C	500 cycles

Drones batteries

Lithium-Ion Batteries for Drones: Endurance and Energy Density

Rechargeable Batteries for Military and Civilian Drones

Our Standard Li-Ion Batteries for Drones

Williamson Electronique is actively involved in the defense drone sector

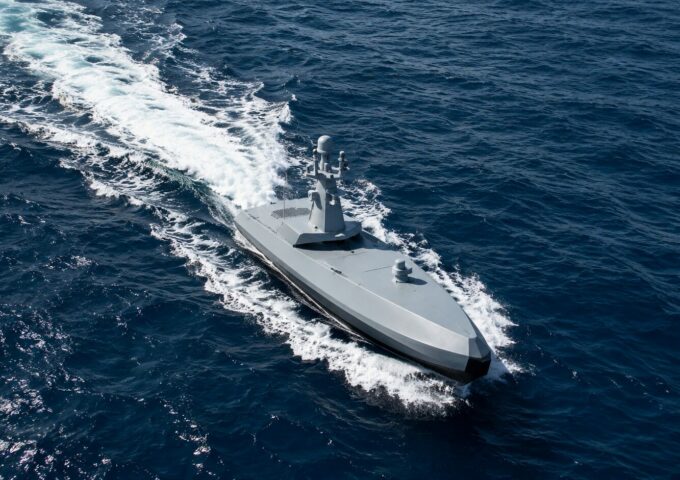

Batteries for Underwater Drones – UUV (Unmanned Underwater Vehicle)

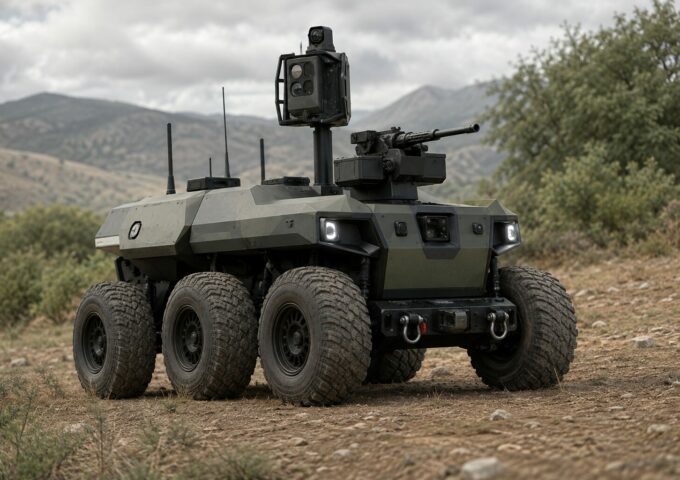

Batteries for Ground Drones – UGV (Unmanned Ground Vehicle)
