Lithium-Iron Phosphate (LiFePO₄ or LFP)

Name: Lithium-Iron Phosphate
Brand: Williamson Electronique

Lithium-Iron Phosphate (LiFePo4 or LFP) Lithium-Iron-Phosphate batteries are rechargeable accumulators using lithium ions to store and release energy. They are now a popular alternative to Li-Ion batteries for many applications (automotive, energy storage, industry) due to their excellent thermal stability and long lifespan.

Characteristics:

LiFePo4 technology revolutionizes the battery world with its unmatched safety and exceptional durability.

Exceptional Safety: Highly secure technology.
Extended Lifespan: Over 10 years.
High Cycle Count: From 3000 to several thousand.
Reduced Environmental Impact: Low toxicity.
Excellent Temperature Resistance: Up to 70°C.
Constant Power: Stable throughout discharge.

See the datasheets

Datasheets

Modèle	Tension nominale	Capacité nominale	Densité énergétique vol.	Longueur	Largeur	Hauteur	Courant continu max
12V-7.5Ah	12.8 V	7.5 Ah	106.3 Wh/L	151 mm	65 mm	92 mm	15 A
12Ah-12V	12.8 V	12 Ah	109.6 Wh/L	151 mm	98 mm	95 mm	24 A
20Ah-12V	12.8 V	20 Ah	110.7 Wh/L	180 mm	76 mm	168 mm	40 A
30Ah-12V	12.8 V	30 Ah	166.2 Wh/L	180 mm	76 mm	168 mm	45 A
40Ah-12V	12.8 V	40 Ah	112.5 Wh/L	196 mm	135 mm	172 mm	50 A
45Ah-12V	12.8 V	45 Ah	126.6 Wh/L	196 mm	135 mm	172 mm	55 A
70Ah-12V	12.8 V	70 Ah	135.8 Wh/L	228 mm	138 mm	210 mm	100 A
100Ah-12V	12.8 V	100 Ah	138.2 Wh/L	260 mm	168 mm	212 mm	125 A
135Ah-12V-BT	12.8 V	135 Ah	186.8 Wh/L	260 mm	170 mm	208 mm	135 A
135Ah-12V-BT-HEATER	12.8 V	135 Ah	186.8 Wh/L	260 mm	170 mm	208 mm	135 A
135Ah-12V-BLADE-BT	12.8 V	135 Ah	141.2 Wh/L	395 mm	108 mm	287 mm	135 A
150Ah-12V-BT-HEATER	12.8 V	150 Ah	176.6 Wh/L	307 mm	167 mm	212 mm	150 A
250Ah-12V	12.8 V	250 Ah	125.4 Wh/L	500 mm	239 mm	217 mm	180 A

Modèle	Tension nominale	Capacité nominale	Densité énergétique vol.	Longueur	Largeur	Hauteur	Courant continu max
32Ah-24V	25.6 V	32 Ah	148.4 Wh/L	197 mm	166 mm	169 mm	16 A
50Ah-24V	25.6 V	50 Ah	138.2 Wh/L	260 mm	168 mm	212 mm	25 A

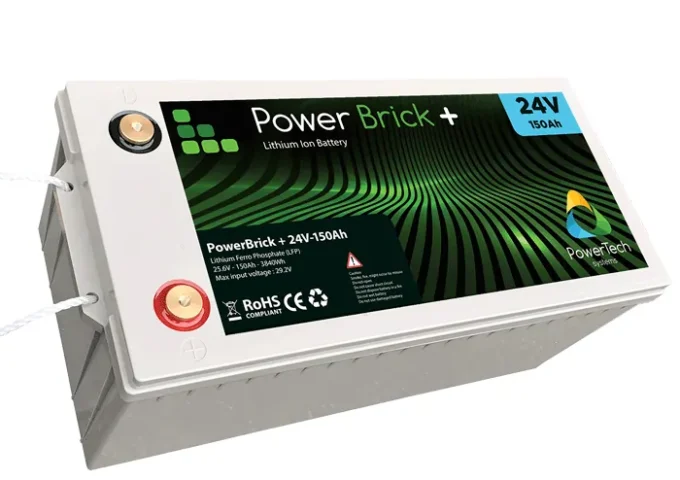

150Ah-24V	25.6 V	150 Ah	148.2 Wh/L	500 mm	239 mm	217 mm	100 A

Modèle	Tension nominale	Capacité nominale	Densité énergétique vol.	Longueur (mm)	Largeur (mm)	Hauteur (mm)	Cycles (>)	Courant continu max
25Ah-48V	51.2 V	25 Ah	138.2 Wh/L	260	168	212	3000	50 A
32Ah-48V	51.2 V	32 Ah	177.1 Wh/L	260	168	212	3000	65 A
72Ah-48V	51.2 V	72 Ah	142.3 Wh/L	500	239	217	3000	90 A
105Ah-48V	51.2 V	105 Ah	207.5 Wh/L	500	239	217	3000	120 A
PowerModule	51.2 V	105 Ah	201.5 Wh/L	400	290	230	3000	120 A
