Lithium – Dioxyde de Manganèse (Li-MnO2)

Li-MnO₂ batteries are primary non-rechargeable batteries that use manganese dioxide (MnO₂) as the positive electrode and metallic lithium as the negative electrode.

They offer a good compromise between energy density, safety, and cost, with a long shelf life and a wide operating temperature range.

These batteries are commonly used in medical devices, backup systems, security devices, and portable electronic equipment.

Characteristics:

Solid cathode cells that are free from the passivation phenomenon (voltage drop at startup after storage).
In cylindrical format, there are high-power elements used in the manufacture of distress beacon batteries.
Excellent reactivity in pulse discharge.
Suitable for needs combining lifespan and power.

Examples:

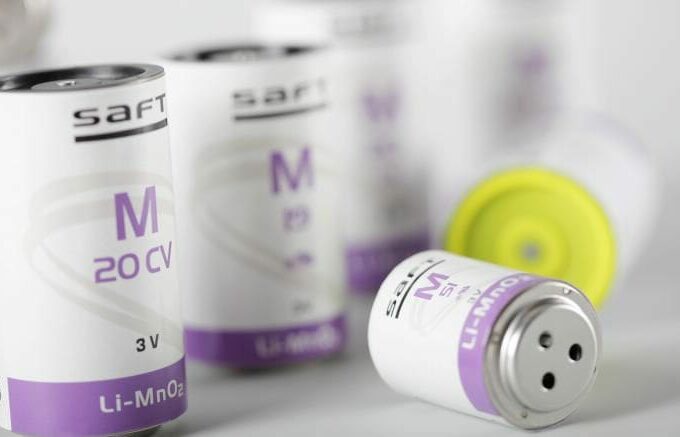

SAFT M20, M56, LM33600, LM26500, LM17500, PANASONIC CR-AA, CR2/3A.

Datasheets – products

Modèle	Configuration	Tension nominale	Capacité typique	Diamètre	Hauteur	Poids	Plage de températures
WILPA8117 Visuel indisponible pour le moment	1S1P	3 V	3 Ah	17.7 mm	54.3 mm	30 g	-60°C / +85°C
WILPA8118 Visuel indisponible pour le moment	1S1P	3 V	7.4 Ah	28 mm	55 mm	64 g	-40°C / +85°C
WILPA8119 Visuel indisponible pour le moment	1S1P	3 V	7.4 Ah	25.8 mm	51.1 mm	61 g	-40°C / +85°C
WILPA8120 Visuel indisponible pour le moment	1S1P	3 V	12.5 Ah	35.2 mm	65.9 mm	124 g	-40°C / +72°C

Modèle	Configuration	Tension nominale	Capacité typique	Longueur	Largeur	Hauteur	Poids	Plage de températures
WILPA8207 Visuel indisponible pour le moment	2S1P	6 V	12.6 Ah	67 mm	35 mm	64 mm	245 g	-40°C / +72°C

Two options are available to you

Off-the-shelf products

Williamson Electronique offers a catalog of standard packs designed for various industrial applications.

If one of these models meets your needs, you can consult its datasheet and contact us for more information.

View catalog

Custom design

Williamson Electronique supports you from the establishment of your specifications to the prototyping of your pack to offer you the appropriate product solution for your application.

You can consult the assembled cells and configure your product here.

Configurator

Datasheets – cells

Elément	Tension nominale	Capacité nominale	Capacité d’impulsion	Diamètre	Hauteur (mm)	Poids (g)	Températures de fonctionnement (°C)
LM17130	3 V	0.5 Ah	0.4 A	16.7 mm	16.33 mm	8 g	-40 °C / +70 °C
LM17500	3 V	3.3 Ah	2 A	17.5 mm	51.5 mm	28 g	-40 °C / +85 °C
LM26500	3 V	7.75 Ah	4 A	26 mm	51.5 mm	61 g	-40 °C / +85 °C
LM33600	3 V	13.4 Ah	8 A	34.2 mm	61.55 mm	113 g	-40 °C / +85 °C
M19	3 V	10.3 Ah	7.5 A	33.5 mm	58.5 mm	105 g	-40 °C / +72 °C
M19HR	3 V	10.3 Ah	10 A	33.5 mm	58.5 mm	107 g	-40 °C / +72 °C
M20	3 V	12.6 Ah	8 A	34.2 mm	61.5 mm	117 g	-40 °C / +72 °C
M20CV	3 V	12.5 Ah	8 A	33.8 mm	61.5 mm	120 g	-40 °C / +72 °C
M20EX	3 V	12.4 Ah	8 A	34.2 mm	61.5 mm	115 g	-40 °C / +72 °C
M20HR	3 V	11.5 Ah	10 A	34.2 mm	61.5 mm	117 g	-40 °C / +72 °C
M52	3 V	5.6 Ah	4 A	26.2 mm	51.5 mm	58 g	-40 °C / +72 °C
M52CV	3 V	5.3 Ah	4 A	26.2 mm	51.5 mm	59 g	-40 °C / +72 °C
M52EX	3 V	5.6 Ah	4 A	26.2 mm	51.5 mm	58 g	-40 °C / +72 °C
M52HR	3 V	4.8 Ah	5 A	26.2 mm	51.5 mm	59 g	-40 °C / +72 °C
M56	3 V	6.7 Ah	6 A	26.2 mm	61.5 mm	70 g	-40 °C / +72 °C

Elément	Tension nominale	Capacité typique	Décharge continue	Diamètre	Hauteur	Poids (g)	Températures de fonctionnement (°C)
BR-1/2AA	3 V	1 Ah	2.5 mA	14.5 mm	25.5 mm	8 g	-40 °C / +100 °C
BR-2/3A	3 V	1.2 Ah	2.5 mA	17 mm	33.5 mm	13 g	-40 °C / +85 °C
BR-2/3AG	3 V	1.45 Ah	2.5 mA	17 mm	33.5 mm	13 g	-40 °C / +85 °C
BR-A	3 V	1.8 Ah	2.5 mA	17 mm	45.5 mm	18 g	-40 °C / +85 °C
BR-AG	3 V	1.8 Ah	2.5 mA	17 mm	45.5 mm	18 g	-40 °C / +85 °C
BR-C	3 V	5 Ah	5 mA	26 mm	50.5 mm	41 g	-40 °C / +85 °C

Elément	Tension nominale	Capacité typique (Ah)	Décharge continue	Diamètre	Hauteur	Poids	Températures décharge
CR-2Z	3 V	1 Ah	2.5 mA	15.6 mm	27 mm	11 g	-40 °C / +85 °C
CR-2/3AZ	3 V	1.6 Ah	2.5 mA	17 mm	33.5 mm	16 g	-40 °C / +85 °C
CR-AAU	3 V	1.8 Ah	2.5 mA	14.5 mm	50.5 mm	18 g	-40 °C / +85 °C
CR-AG	3 V	2.4 Ah	2.5 mA	17 mm	45.5 mm	22 g	-40 °C / +85 °C
CR-LAZ	3 V	3 Ah	2.5 mA	17 mm	50.5 mm	26 g	-40 °C / +85 °C
